Armored Fiber Optic Cable for CCTV and Outdoor Cabinets

Compact Stainless Steel Armored Fiber Patch Cord for CCTV, Surveillance Cabinets, and Industrial Networks

Product Overview

The HHD Fiber 2.0mm and 3.0mm armored fiber optic cable is designed for CCTV surveillance systems, outdoor equipment cabinets, telecom access points, and industrial applications where fiber connections may face additional physical risks.

In controlled indoor environments, a standard fiber patch cord may provide sufficient protection. However, fiber connections installed inside outdoor cabinets, roadside surveillance boxes, industrial control panels, and frequently accessed equipment rooms can be exposed to crushing, pulling, accidental impact, repeated maintenance, and rodent-related damage.

This armored fiber cable features a flexible stainless steel protective tube beneath the outer jacket, providing an additional layer of mechanical protection without requiring a large cable diameter.

It is available with OS2 single-mode or OM1–OM5 multimode fiber and can be customized with LC, SC, ST, or FC connectors.

Why Use Armored Fiber in CCTV Systems?

The purpose of armored fiber is not to replace standard fiber optic cables in every installation.

It is to provide additional protection where the deployment environment requires it.

Fiber connections inside outdoor CCTV cabinets may be affected by:

Accidental pulling during maintenance

Cable crushing inside crowded enclosures

Repeated opening and closing of cabinets

Contact with tools or other equipment

Excessive bending or poor cable routing

Rodent-related risks

Vibration and movement in industrial environments

The stainless steel armored structure helps protect the optical fiber against these physical risks and improves the long-term reliability of critical surveillance connections.

Key Features

*Flexible stainless steel armored protection

*Compact 2.0mm or 3.0mm cable diameter

*Improved resistance to crushing and pulling stress

*Helps reduce damage during repeated maintenance

*Additional protection against rodent-related risks

*Stable optical transmission over long distances

*OS2 single-mode and OM1–OM5 multimode options

*LC, SC, ST, and FC connector options

*LSZH and OFNR jacket materials available

*Customized length, connector, fiber type, and jacket color

Specification

Parameter	Specification
Cable Type	2.0mm/3.0mm Armored Fiber Optic Cable for CCTV
Cable Count	single-core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ3.0/2.0 ± 0.1 mm
Jacket Material	LSZH ,RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 600 N (Short-Term)
	≥ 300 N (Long-Term)
Crush Resistance	≥ 3500 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40℃ ~ +85℃
Jacket	RoHS-Compliant
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC, MTP/MPO (Customizable)
Cable Weight	11kg/km
Connector Insertion Loss (according to YDT 2617-2013)	UPC(SM): Max. 0.3 dB
	APC(SM): Max. 0.25 dB
Connector Return Loss (according to YDT 2617-2013)	UPC(SM): Min. 50 dB
	APC(SM): Min. 60 dB

Product Applications

Outdoor CCTV Cabinets

Suitable for fiber connections inside roadside surveillance cabinets, residential community monitoring boxes, traffic control enclosures, and outdoor security equipment.

The armored structure provides additional protection where patch cords may be exposed to maintenance activity, cable movement, or accidental physical stress.

CCTV Video Surveillance

Supports stable optical signal transmission for HD and high-resolution surveillance systems in:

*hopping malls

*Parking facilities

*Airports

*Warehouses

*Residential communities

*Office buildings

*Transportation hubs

*Public security systems

Roadside Surveillance Systems

Suitable for roadside cameras, traffic monitoring equipment, intelligent transportation systems, and municipal surveillance networks requiring reliable long-distance fiber transmission.

Industrial Surveillance

Used in factories, power stations, mines, production facilities, and industrial control systems where vibration, equipment movement, and maintenance activities may increase the risk of cable damage.

Smart Building Security

Suitable for video surveillance, access control, building management, and other low-voltage systems in:

Hotels

Hospitals

Schools

Commercial buildings

Residential properties

Data and control rooms

Telecom Access Points

Can be used inside telecom cabinets, access network enclosures, distribution boxes, and other locations where compact fiber connections require additional mechanical protection.

2.0mm and 3.0mm Cable Options

2.0mm Armored Fiber Optic Cable

The 2.0mm version provides a compact and flexible solution for installations with limited routing space.

Recommended for:

High-density cabinets

Indoor CCTV equipment

Security control rooms

Compact enclosures

Short equipment connections

Applications requiring flexible cable routing

3.0mm Armored Fiber Optic Cable

The 3.0mm version provides a thicker outer jacket and stronger overall cable construction.

Recommended for:

Outdoor CCTV cabinets

Roadside surveillance systems

Industrial control panels·

Warehouses and factories

Equipment rooms with frequent maintenance

Applications requiring a higher level of physical protection

Available Connector Configurations

HHD Fiber can manufacture different connector combinations, including:

LC to LC

LC to SC

SC to SC

SC to FC

ST to ST

FC to FC

Customized hybrid connector combinations

One-end connectorized cable/fiber pigtails

Both-end connectorized cable/fiber patch cords

Unconnectorized armored fiber cable for field termination

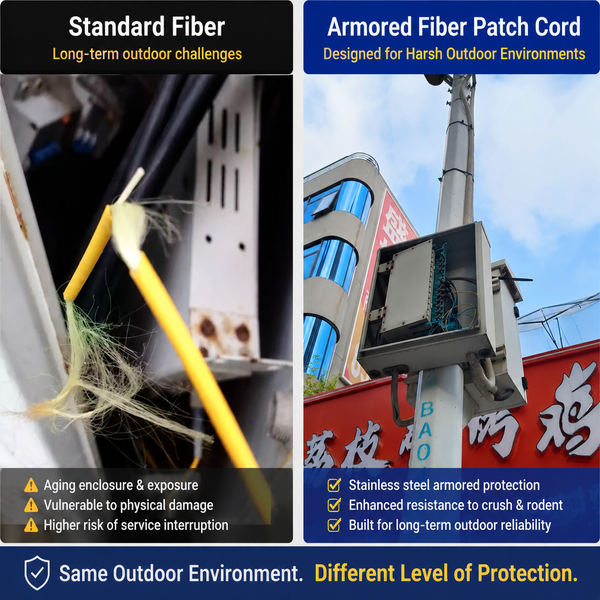

Armored Fiber vs. Standard Fiber

Standard fiber optic patch cords are suitable for many controlled indoor environments.

Armored fiber patch cords are recommended when the installation faces a higher risk of physical damage.

The correct choice depends on the real deployment environment, routing conditions, maintenance frequency, and required protection level.

Installation Considerations

For outdoor applications, the armored patch cord is normally installed inside a cabinet, enclosure, conduit, or protected pathway.

The stainless steel armor improves mechanical protection, but the complete installation should also consider:

Cabinet sealing

Water and moisture protection

Cable entry protection

Connector waterproofing

Proper strain relief

Cable routing

Minimum bending radius

UV-resistant jacket requirements

Outdoor temperature conditions

For directly exposed outdoor installations, please confirm whether a TPU, PE, UV-resistant, or waterproof cable structure is required.

Customization Options

HHD Fiber provides customized armored fiber optic solutions according to project requirements.

Available options include:

2.0mm or 3.0mm cable diameter

OS2, OM1, OM2, OM3, OM4, or OM5 fiber

LC, SC, ST, or FC connectors

UPC or APC polishing

LSZH, OFNR, TPU, or customized jacket

Customized cable length

Customized jacket color

One-end or two-end termination

Corning or YOFC fiber options

Customized labeling

OEM packaging

Project-specific mechanical requirements

Quality Control

Each armored fiber cable can be inspected and tested before shipment for:

Fiber continuity

Connector insertion loss

Connector return loss

Connector end-face quality

Cable length

Jacket appearance

Connector polarity

Mechanical construction

Labeling accuracy

Individual test reports can be provided according to customer requirements.

How to Request a Quotation

Please provide the following information:

Application environment

Fiber type: OS2, OM1, OM2, OM3, OM4, or OM5

Cable diameter: 2.0mm or 3.0mm

Connector type

UPC or APC polishing

Required cable length

Order quantity

Jacket material

Indoor, cabinet, or outdoor installation

Special labeling or packaging requirements

Contact HHD Fiber for customized armored fiber optic solutions for CCTV systems, outdoor cabinets, industrial surveillance, and telecom access networks.

Not every application requires the highest specification. But every application requires the right specification.
